OKULEN® 500 - AB - blue - FN5990

OKULEN® OK 500 – AB – FN5990 anti-microbial is a HMW-PE Polymer. It has excellent anti-microbial protection. The protection range which has been measured is 99,99 % against bacteria “Staphylococcus aureus ATCC6538P” and “Klebsiella pneumoniae ATCC 4352“. This grade is EU & FDA compliant for food industry.

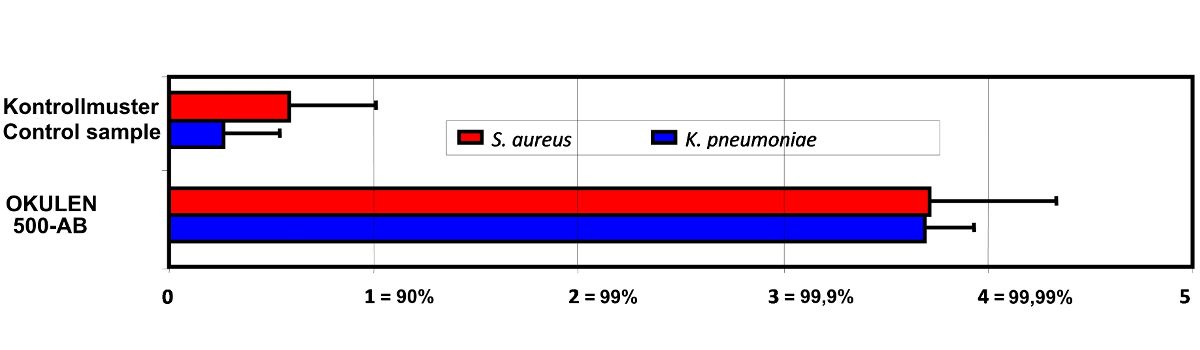

OK500-AB-Diagramm

Properties:

• excellent anti-microbial protection
• water repellent
• FDA - conform
• EU1935/2004 - conform
• EU10/2011 - conform

food-grade

Characteristics and standard values
Properties
Method
Unit
OKULEN® 500 - AB - blue - FN5990
Physical properties
 Molecular-weight k.a. Mio. g/mol. ~ 0.5
 Density DINENISO 1183-1 (04/2013)
ASTM D792
g/cm³ > 0.950
 Notched impact strength DINENISO 11542-2 (01/2010) kJ/m² > 15
 Abrasion-Index (Sand-Slurry) DINENISO 15527 (05/2013) 360 - 440
 Tensile strength at yield (1B - 50mm/Min.) DINENISO 527-2 (06/2012)
ASTM D 638 (2010)
N/mm² > 26
  --- ---
 Elongation (Break / 1B - 50mm/Min.) DINENISO 527-2 (06/2012)
ASTM D 638 (2010)
% > 350
 Tensile-E-modulus (1B - 1mm/Min.) DINENISO 527-2 (06/2012)
ASTM D 638 (2010)
N/mm² > 1100
  --- ---
 Static Friction ASTM D 1894 (2011) ~ 0.15 - 0.20
 Dynamic Friction ASTM D 1894 (2011) ~ 0.10 - 0.15
 Shore-D-Hardness, 3 sec. value 6 mm plate DINENISO 868 (10/2003) D 65 - 67
 Ball indentation hardness DINENISO 2039 N/mm² ---
 Water absorption DINENISO 62 (05/2008) % < 0.01
Thermal properties
 Melting Point (DSC) DINENISO 11357-1 (03/2010) °C 135 - 137
 Thermal Conductivity Wire method W/m*K ~ 0.41
 Max. operation temperature Literature °C ~ 80
 Coefficient of thermal expansion (23 - 80°C) ISO 11359 mm/mm °C ~ 0.00015 - 0.00020
Electrical properties
 Volume resistivity DINEN 62631-3-1 (01/2017) Ohm*cm > 1E14
 Surface resistivity DINEN 62631-3-2 (10/2016) Ohm > 1E13
 ATEX-Directive - TÜV approved! ATEX-Directive ---
 ESD-D --- Ohm ---
Burning properties
 Fire resistance (Self-classification) DIN 4102 Klasse B2
 Fire resistance (Self-classification) UL94 Klasse HB
Physiological properties
 Food compliant EU/FDA
